PRODUCT SHOW

Product Show

Frame	27.5" aluminum alloy Frame	Motor	Bafang Mid motor 48V1000W
Tyres	27.5X2.8-KENND
Rim	Al alloy double wall and CNC side wall
Front fork	Al alloy SUS fork -RST		500W--1000W for UAS & Canada

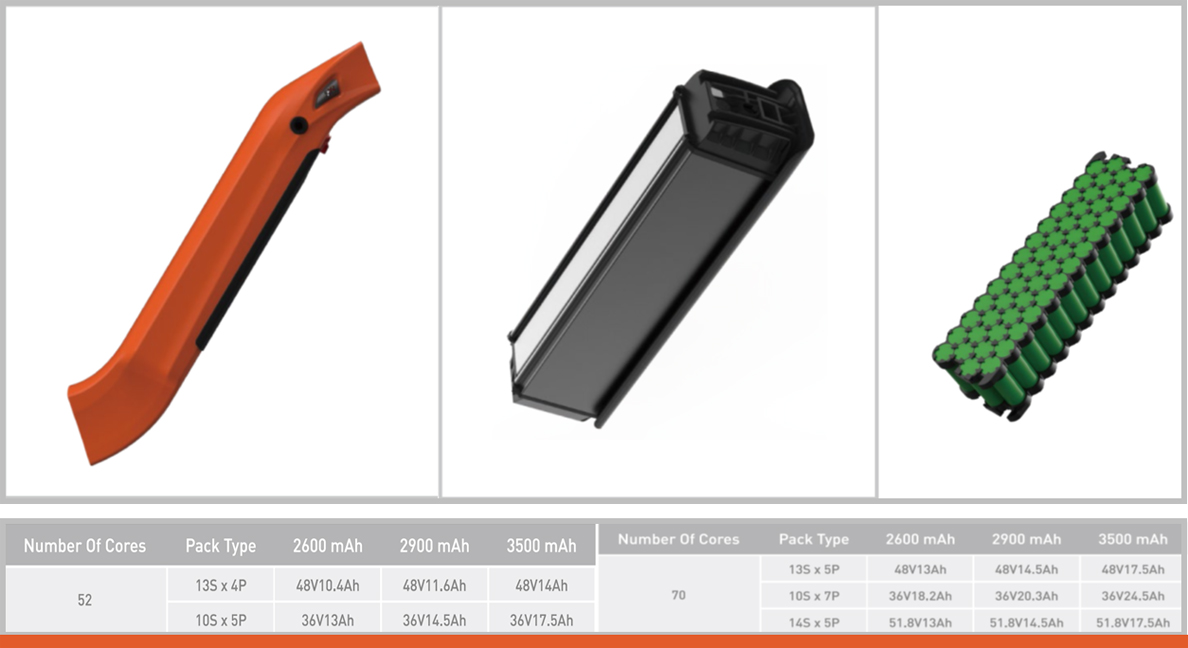

brake	TEKTRO Oil pressure disc brake	Battery	48V/14AH Lithium battery
Head Set	Ahead 1-1/8-NECO	Controller	Sine wave intelligent brushless
Speed gears	SHIMANO speed 9 gears	Display	LCD display
Derailleur	SHIMANO ACERA	Mode	1:1 pedal assistant system(PAS)
Handle bar	Al alloy	��	Pure Electric Run mode by throttle
Stem	Al alloy	Charger	AC 100V-240V, 2.5 -3Amps smart charger
Brake lever	TEKTRO Oil pressure disc brake	Charge time	3 hours
Hub	Front quick release	Max speed	32km/h(USA & Canada) ,The highest speed adjustable.42KM/H
Chain	Rust resistant chain Z99 KMC	Range	PAS model Until 160 km
Chain wheel	36T , al alloy crank	�� Max load	E-bike mode 55-65km
Saddle	Black Leather saddle comfortable	�� Max load	120kgs
Seat post	Al alloy with suspension-PROMAX	N.W/G.W	25kgs / 30kgs
Pedal	Al alloy	Carton Size	1450X280X770mm
Light	F/R LED battery lights-SIBANG	Capacity	98pcs/20ft container, 208pcs/40 HQ

LCD display instrument Battery; Light Switch, Timer; Assist gear; Average/Maximum Speed; Push aided; Trip distance/odometer;

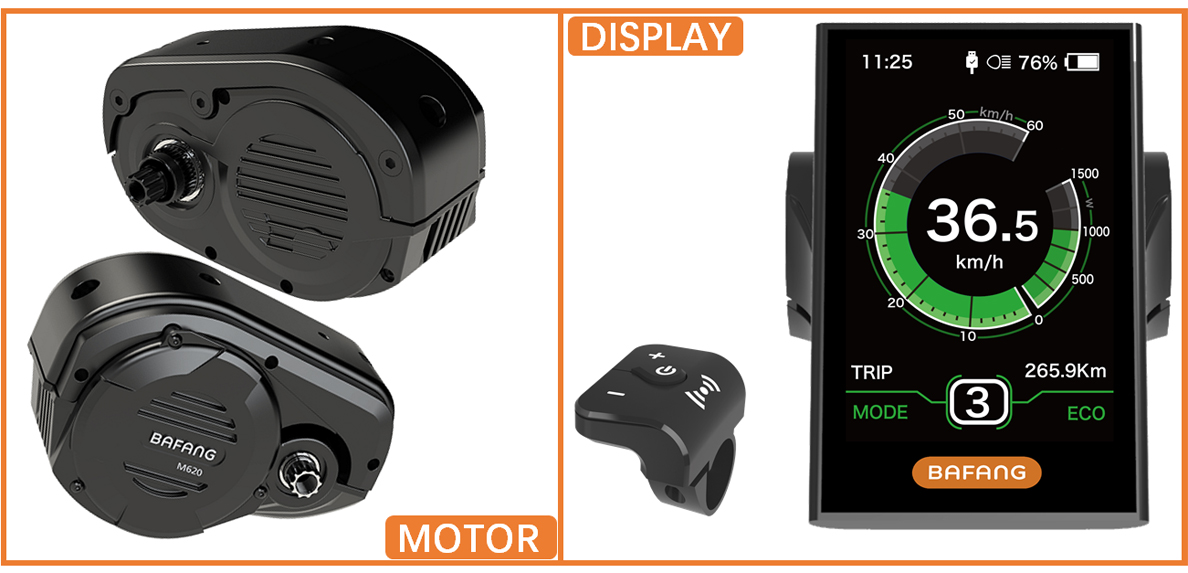

MOTOR

Bafang's powerhouse! With maximum torque of 160Nm and 750 or even 1000W rated power output, the M620 is predestined for eTandems, eCargo bikes and high-end eMTBs �C it will definitely get the heaviest loads accelerated on even the steepest incline. Due to the system's dual sensor design, the rider has full control at all times and enjoys extremely sensitive responsiveness. In use with logistics companies across the globe.

DISPLAY

All the key details at a glance! The new DP C18 display delivers its information on a color LCD screen and is perfectly readable even in direct sunlight. The compact control unit sits conveniently on the left handlebar grip for perfect ergonomics. With its shatterproof glass and high-quality seals, water and dirt cannot harm the DP C18 display. With Bluetooth and USB charging port.
